Working area, height under the focus and a frame that does not reflect back

The best honeycomb laser beds for 2026

A honeycomb bed lifts the workpiece off the surface below on a grid of thin metal cells, so that a cutting laser passes through the material without burning the table underneath, and smoke and heat escape from beneath the cut. The working area should cover the laser's travel, and a bed smaller than the machine limits it. The height of the bed raises the material, which changes the focus distance the laser was set for — the machine's focus has to be adjusted, and a bed tall enough to exceed the laser's focus range does not fit that machine. Cell size decides how well small parts are supported: small pieces can fall through large cells once cut. The frame and backing plate protect the surface under the bed, and a solid aluminium plate is the usual answer. Hold-down pins or magnets keep thin, warped material flat. Machine compatibility is named on the careful listings. The honeycomb reflects some beam energy and collects residue that can burn, so cleaning it follows the maker's advice, and a laser is never left cutting unattended. We compare working area, height and focus, cell size, frame and backing, hold-downs and compatibility.

The parts and materials worth a place on the bench

1.

   Twotrees Aluminium honeycomb bed 300 × 300 × 22 mm, 260 × 260 mm working area

   A 300 × 300 × 22 mm riveted aluminium honeycomb bed from Twotrees with a centre support and a same-size aluminium plate underneath, whose perforated working area is 260 × 260 mm.

   Working area

   260 × 260 mm perforated area on a 300 × 300 mm bed, title and fourth bullet

   Height and focus

   22 mm thick, title and fourth bullet

   Cell size

   Absent from the listing

   Frame and backing

   Riveted aluminium with a centre support structure, first bullet; aluminium plate of the same size underneath, third bullet

   Hold-downs

   Absent from the listing text — the product photograph shows four triangular corner pieces and edge scales marked to 250 mm

   Compatibility

   Absent from the listing — laser engravers in general, title

   Amazon reference

   B0B1P5K9J4 (same reference on 5 Amazon marketplaces)

   EAN

   0760606089136

   • The real working area stated: 260 × 260 mm
   • An aluminium plate underneath to shield the table
   • Working area 40 mm smaller each way than the bed

   Best for: A diode engraver owner whose projects fit inside 260 × 260 mm and who wants a backing plate included.

   ≈ £43 / 39 €

   Check price on Amazon
2.

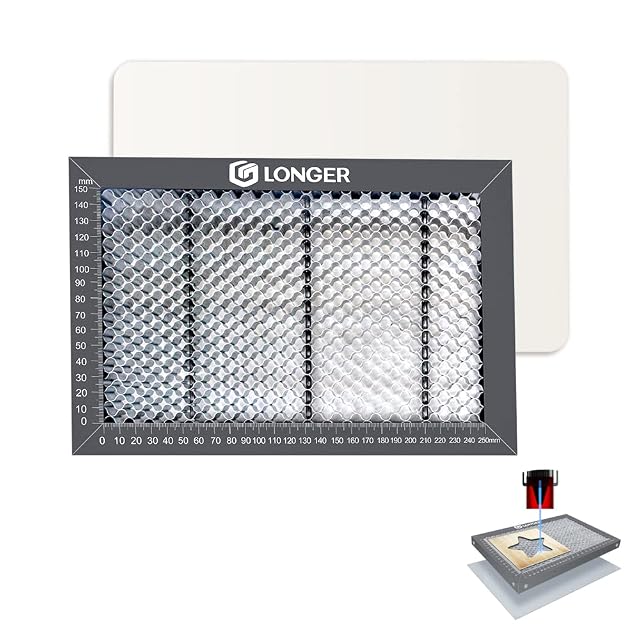

   Longer Honeycomb bed 300 × 200 × 22 mm, 9 mm cells, with aluminium plate and scales

   A 300 × 200 × 22 mm honeycomb bed from LONGER with 9 mm openings, a steel honeycomb, X and Y scale lines along its edges and an aluminium plate underneath, sold for diode and CO2 laser engravers.

   Working area

   300 × 200 mm, title and first bullet; no separate working area given

   Height and focus

   22 mm thick, first bullet

   Cell size

   9 mm opening size, first bullet

   Frame and backing

   Steel honeycomb, second bullet; aluminium plate included, fifth bullet

   Hold-downs

   Absent from the listing — X and Y scale lines along the edges, fourth bullet

   Compatibility

   Diode and CO2 laser engravers, fourth bullet

   Amazon reference

   B0C9ZJ5FP9 (same reference on 5 Amazon marketplaces)

   EAN

   0766997800114

   • A cell size given: 9 mm
   • Scale lines on the X and Y edges for measuring
   • No working area separate from the outside size

   Best for: A diode engraver owner who wants to measure placement on the bed itself.

   ≈ 38 €

   Check price on Amazon
3.

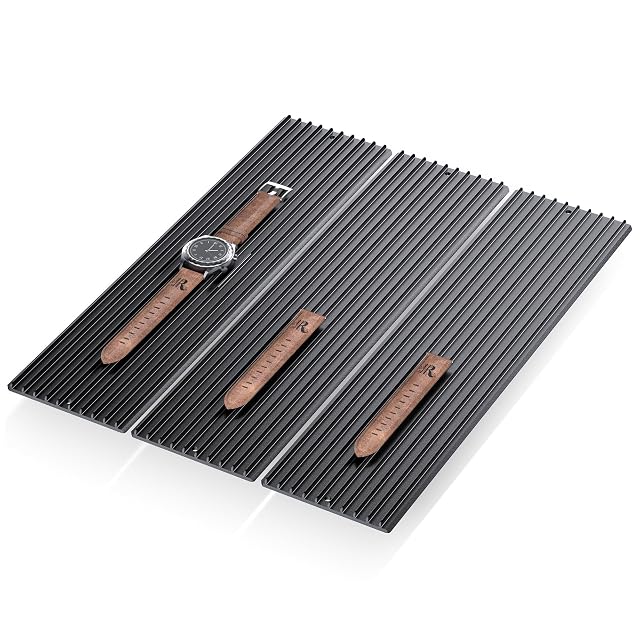

   Ophiner Modular aluminium slat bed 400 × 300 mm, three 400 × 100 mm modules

   A modular laser bed from Ophiner made of three 400 × 100 mm modules of 3 mm black-anodised aluminium slats, forming a 400 × 300 mm working area, with single modules replaceable and engraver brands from xTool to Ortur named.

   Working area

   400 × 300 mm effective, from three 400 × 100 mm modules, first and fourth bullets

   Height and focus

   Absent from the listing

   Cell size

   Absent from the listing — open slat structure rather than cells, second and third bullets

   Frame and backing

   3 mm aluminium, black anodised, fifth bullet; no backing plate mentioned

   Hold-downs

   Absent from the listing

   Compatibility

   xTool, Atomstack, Algolaser, Creality, Sculpfun, Ortur and other open laser engravers, fourth bullet

   Amazon reference

   B0GWHBTV6Z (same reference on 5 Amazon marketplaces)

   EAN

   0794969921857

   • Modules replaceable one at a time
   • Slats with a small contact area, stated to avoid honeycomb marks
   • No height given

   Best for: An open-frame diode engraver owner who cuts through often and wants to replace worn sections separately.

   ≈ 50 €

   Check price on Amazon
4.

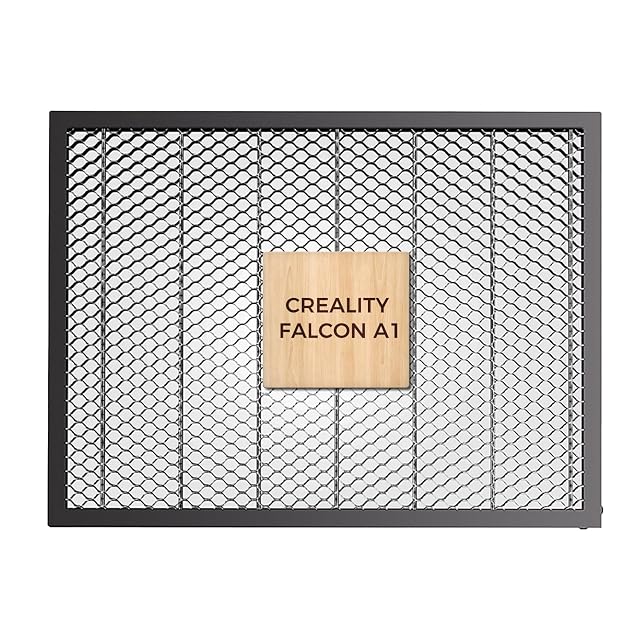

   Creality Honeycomb bed 460 × 346 × 15 mm for Falcon A1 and A1 Pro, 8 mm cells

   Creality’s 460 × 346 × 15 mm honeycomb bed for the Falcon A1 and A1 Pro laser engravers, with an 8 mm honeycomb in galvanised iron and aluminium alloy, internal support columns, four removable corner guards and a 430 × 316 mm maximum working area.

   Working area

   430 × 316 mm maximum on a 460 × 346 mm bed, fourth bullet

   Height and focus

   15 mm thick, fourth bullet

   Cell size

   8 mm honeycomb structure, first bullet

   Frame and backing

   Galvanised iron and aluminium alloy with internal support columns, third bullet

   Hold-downs

   Absent from the listing — four removable corner guards, second bullet

   Compatibility

   Creality Falcon A1 and A1 Pro, and engravers with a similar working area, title and fourth and fifth bullets

   Amazon reference

   B0G2991K4P (same reference on 5 Amazon marketplaces)

   EAN

   0198549083513

   • Made for the Falcon A1 reviewed on this site
   • Cell size, thickness and working area all given
   • No hold-downs

   Best for: A Creality Falcon A1 or A1 Pro owner who wants the maker’s bed sized for the machine.

   ≈ £60 / 68 €

   Check price on Amazon
