Diameter range, a height the focus can reach and a controller it plugs into

The best laser rotary rollers for 2026

A rotary attachment turns a cylindrical object under the laser so a design can wrap around it — tumblers, bottles, rolling pins, pens — while the laser moves along one axis only. The design divides the shelf: rollers carry the object on two turning wheels and suit smooth cylinders, while a chuck grips one end and holds tapered or irregular items more securely. The object diameter range is published as a minimum and maximum, and the maximum length or weight follows. The attachment's height raises the surface toward the laser, and the laser has to be able to focus at that height, sometimes with risers under the machine. The motor connector and step settings must match the controller: most rotaries replace the Y-axis motor, and the software needs the circumference or steps per rotation. Controller support in LightBurn or the maker's software is named on the careful listings. Tilt adjustment levels a tapered tumbler so the surface stays at one focus distance. We compare roller or chuck design, diameter range, maximum length, height, connector, software support and tilt adjustment.

The parts and materials worth a place on the bench

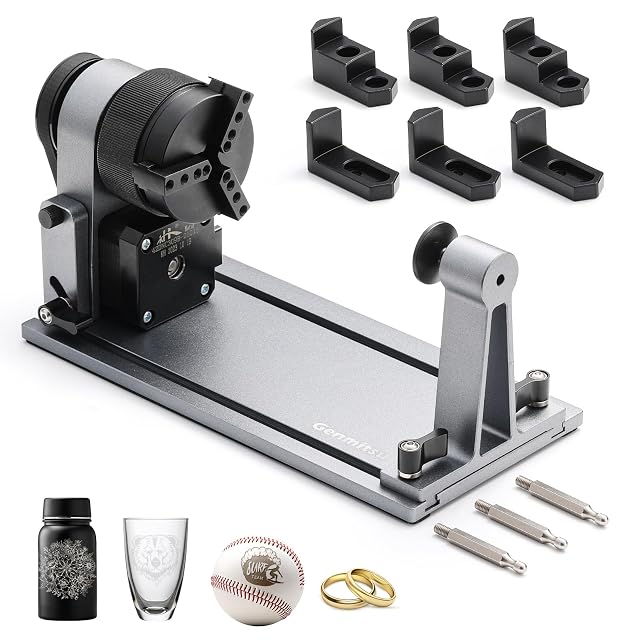

  1. Genmitsu chuck on a long base with a tailstock, six spare jaws, three pins, and an engraved bottle, glass, ball and rings

    Genmitsu MD18 3-in-1 rotary chuck for Genmitsu L8 and Z6, 0–30° tilt

    A 3-in-1 multi-jaw rotary chuck from Genmitsu for its L8 and Z6 engravers, connected by USB and 6-pin cable, clamping L-shaped, ladder-shaped and hexagonal objects with one hand, tilting from 0 to 30° and working with LightBurn.

    Roller or chuck design
    3-in-1 multi-jaw chuck with one-handed clamping, title and second bullet
    Diameter range
    L-shaped 60–120 mm, ladder-shaped 60–120 mm, hexagonal 10–80 mm objects, second bullet
    Maximum length
    Absent from the listing text — the product photograph shows a tailstock on a long base
    Height
    Absent from the listing
    Connector
    USB + 6-pin connection cable, first bullet
    Software support
    LightBurn and the software supplied with the Genmitsu L8 and Z6, third bullet
    Tilt adjustment
    0 to 30°, fourth bullet
    Amazon reference
    B0CTHCYGHC (same reference on 6 Amazon marketplaces)
    EAN
    0816550029565
    • Tilt from 0 to 30° for tapered objects
    • No assembly: plug in and engrave, as the third bullet says
    • Made for Genmitsu L8 and Z6; other brands need a connector check

    Best for: A Genmitsu L8 or Z6 owner engraving glasses, rings and tapered cups.

    ≈ $106 / 111 €
    Check price on Amazon

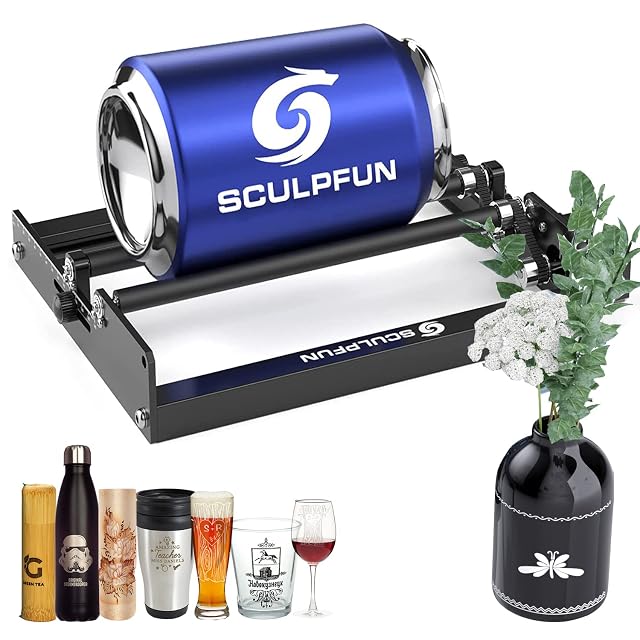

  2. Black SCULPFUN roller frame turning a blue can, beside engraved bottles, cups and glasses

    SCULPFUN Rotary roller with 70A rubber shafts, 5–150 mm, four metal riser feet

    A pre-assembled rotary roller from SCULPFUN with two high-friction 70A rubber shafts, sliding shaft spacing locked by a knob, four metal riser feet, a 5–150 mm engraving range, an adapter cable for the engraver’s X or Y stepper wiring, and a tape measure for diameters.

    Roller or chuck design
    Two 70A rubber rollers; spacing set by sliding and locked with a hand knob, first and fourth bullets
    Diameter range
    5–150 mm engraving range, second bullet
    Maximum length
    Absent from the listing
    Height
    Absent from the listing as a figure — four metal riser feet and a separate stand for different machines, first and second bullets
    Connector
    Adapter cable to the engraver’s X-axis or Y-axis stepper motor wiring, third bullet
    Software support
    LightBurn and LaserGRBL, with no parameter setting needed, fifth bullet
    Tilt adjustment
    Absent from the listing
    Amazon reference
    B09Q932PVD (same reference on 5 Amazon marketplaces)
    EAN
    0860013771119
    • Pre-assembled, with an adapter cable for X or Y stepper wiring
    • Sliding roller spacing locked by hand
    • No tilt adjustment

    Best for: An open-frame diode engraver owner engraving pens, bottles and tumblers with parallel sides.

    ≈ £110 / 99 €
    Check price on Amazon

A price quoted in the text of a MakerVerdict page dates from the day that page was written; the live figure beside each product is fetched while you read and replaces it.
